21 Oct 2024

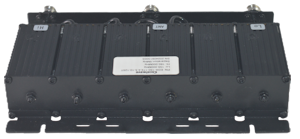

VHF Base Station Duplexer, Field Tunable, 138-174MHz, 4.5-10MHz Duplexing Spacing, Low Insertion Loss, 125W, Compact 1U High Tray Mount
)
)
)
)
)
)
EDX-138-174-4.5-10-125TJ series provides rack space effective duplexer solutions for VHF base stations. Comes with tray mount brackets, EDX-138-174-4.5-10-125TJ is only 1 U high and can handle 125W with full duty cycle. The unit is optimized for low insertion loss and easy tune. The unit can be easily tuned over the frequency range by adjusting 3 tuning rods for Rx channel and 3 tuning rods for Tx channel.
- Low insertion loss, 1dB maximum over the specified tuning range
- Wide range and easy tune for Tx/Rx frequencies
- 125W power handling
- Compact 1U high tray mount
Search Keywords EDX-138-174-4.5-10-125TJ at https:.//www.excelwavetechnologies.com for more technical details.
)
)
)
)
)
)
