04 Apr 2025
All-in-one RF Power Source for Laboratory Power Test, 1.25-125Watts Adjustable Output Power
)

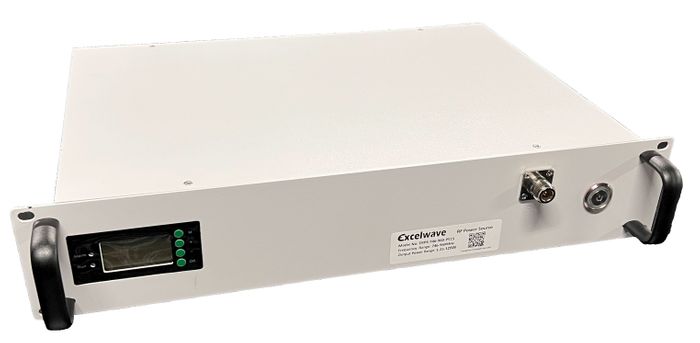

ERPS-746-960-P51S is an RF power amplifier module featuring a built-in continuous sine wave signal generator, delivering a high-power signal source for various laboratory power tests. Its compact 2U rack-mount design eliminates the need for an external signal source and a power meter, ensuring a quick, efficient, neat and organized test setup. Equipped with integrated protection and automatic shutdown features, it enhances reliability while reducing the risk of damage due to operational errors. The control panel allows for easy adjustment of operating frequency and output power, removing the necessity for extra equipment or tools.
Major Features
- Integrated signal source: Eliminates the need for an external signal generator and a power meter, enabling a quick and efficient test setup
- 746-960MHz full range coverage with a user-friendly control panel for signal frequency adjustments.
- Adjustable output power: Ranges from 1.25W to 125W, configurable directly via the control panel.
- Flexible working timer: Choose from 0.5hours, 1.0 hours, 2.0 hours or continuous operation, all conveniently set on the control panel.
- VSWR detection and protection: Automatically shut off when high VSWR detected, safeguarding the equipment.
- Over-temperature protection: If the unit temperature reaches 900C, the power amplifier automatically shuts off. It will restart once the temperature drops below 600C.
- Compact 2U 19” EIA Rack Mount: Designed for a low-profile installation, ensuring efficient space utilization.
- Optional Connectivity: Supports RS232 or RS485 ports for seamless local computer control.
- VHF, UHF, cellular bands and other custom frequency bands are available.
