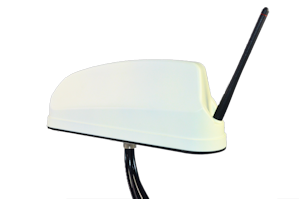

EAM6-r-xx series antennas are 6 port low profile antennas designed for transit applications.  The aerodynamic and low-profile heavy duty radome assembly meets the requirements for a variety of vehicles, including cars, buses, trucks, trams and trains. Four of its six ports cover 617-960/1690-6000MHz full frequency ranges for all cellular networks and are MIMO ready for 4G and 5G systems. Its another port supports GPS/GNSS with built in 26dB gain LNA. The unit comes with customizable pigtail lengths and connectors to perfectly fit your installation requirements. EAM6-4C1G1-r-xx comes with an external antenna port which can be used to plug in a VHF, UHF, 800 or 900MHz band rubber duck antenna with SMA male connector for two way radio communications. The antenna is designed for installation on a solid flat surface with one lock nut and O-ring. The self-adhesive EVA pad on the bottom of the antenna provides additional protection from vibration and water ingress. Only one mounting hole for M25 bolt is needed on the surface.

• 4 cell antennas for 4x4 LTE or 5G, or
• 2 cell antennas for 2x2 LTE or 5G, and 2x2 WiFi
• 1 GPS antenna with 28dB gain
• One optional external rubber duck antenna for VHF, UHF or 800MHz APCO, Tetra and other two way radio applications

Search keyword EAM6 at https://www,excelwavetechnologies.com for more technical details.
