21 Oct 2024

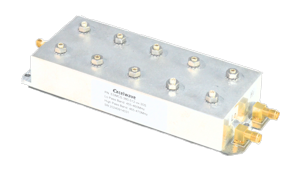

380-512MHz Ultra Compact Duplexer, 30W, 1-5MHz Bandwidth
)
)
)
)
)
)
Excelwave EDMCS series duplexers offers almost half of the footprint of a typical mobile notch duplexer yet with 1-5MHz pass band for for Tetra and APCO applications.
▪Low profile and compact design for congested system integration
▪Halved footprint of a typical mobile duplexer
▪Tx/Rx Frequencies preset at factory
▪80dB isolation with 30W CW power handling capability
▪1-5MHz pass bandwidth which is not achievable by a typical notch duplexer
Search Keywords EDMCS at https://www.excelwavetechnologies.com for the more technical details.
)
)
)
)
)
)
